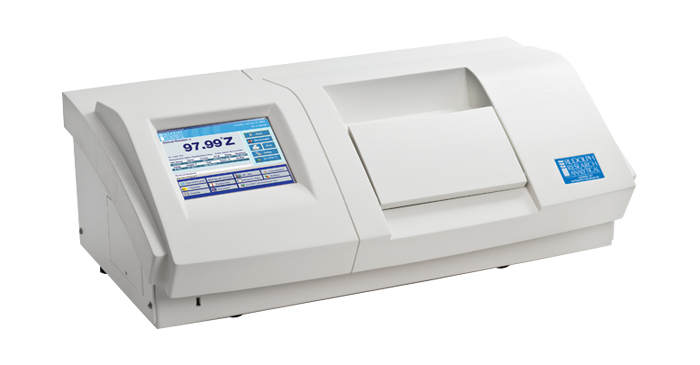

Saccharimeter Selection Guide: Solutions for the Sugar Industry

Rudolph Research has an Automatic Saccharimeter to meet you particular application and measurement requirements.  We have served the sugar industry with high quality laboratory instruments for over 50 years.



Autopol IZ Saccharimeter

Compatible with All Cell Models

14 style cells:
for manual sampling33 style cells: for pour-in sampling. Also available with water jackets for temperature control.
41T style cell: for pour-in sampling and electronic temperature control.
32 style cells: for automation.

Spec Highlights

Features & Benefits

  • Purity Software:Optional with PC only
  • Measurement Range: ±259°Z, ±89.9°Arc
  • Accuracy: 0.02°Z
  • Temperature Correction: 20°C, 27.5°C or user defined
  • Built-in Thermo. Probe: Standard
  • Wavelengths:589nm
  • Prism: Glan Thompson Calcite
For 0.02°Z accuracy applications where budget is critical and 589 nm is the only wavelength needed. This instrument is popular for sugar applications that do not require ICUMSA measurement at the 880 nanometer wavelength.
Rudolph does not use plastic polarizers on its less expensive saccharimeters like other manufacturers do. Rudolph uses only Glan Thompson Calcite polarizers, which cost 10x more than plastic polarizers.

Autopol IIZ Saccharimeter

Compatible Cells for All Models

14 style cells:
for manual sampling
33 style cells: for pour-in sampling. Also available with water jackets for temperature control.
41T style cell: for pour-in sampling and electronic temperature control.
32 style cells: for automation.

Spec Highlights

Features & Benefits

  • Purity Software:Optional with PC only
  • Measurement Range: ±259°Z, ±89.9°Arc
  • Accuracy: 0.02°Z
  • Temperature Correction: 20°C, 27.5°C or user defined
  • Built-in Thermo. Probe: Standard
  • Wavelengths: 589nm, 880nm
  • Prism: Glan Thompson Calcite
For sugar mills that want to measure according to the ICUMSA non-lead procedure but whose application does not require the accuracy of Rudolph’s more expensive models.
Rudolph does not use plastic polarizers on its less expensive saccharimeters like other manufacturers do. Rudolph uses only Glan Thompson Calcite polarizers, which cost 10x more than plastic polarizers.

Autopol 589 Saccharimeter

Compatible Cells for All Models

14 style cells:
for manual sampling
33 style cells: for pour-in sampling. Also available with water jackets for temperature control.
41T style cell: for pour-in sampling and electronic temperature control.
32 style cells: for automation.

Spec Highlights

Features & Benefits

  • Purity Software: Standard
  • Measurement Range: ±259°Z, ±89.9°Arc
  • Accuracy: 0.01°Z
  • Temperature Correction: 20°C, 27.5°C or user defined
  • Built-in Thermo. Probe: Standard
  • Wavelength: 589nm
  • Prism: Glan Thompson Calcite
For 0.01°Z accuracy sugar testing and payment for countries and applications where lead or other suitable clarifiers are still the norm.This model works at 589 nm and is not compliant with ICUMSA testing at 880 nm.

Autopol 880 Saccharimeter

Compatible Cells for All Models

14 style cells:
for manual sampling
33 style cells: for pour-in sampling. Also available with water jackets for temperature control.
41T style cell: for pour-in sampling and electronic temperature control.
32 style cells: for automation.

Spec Highlights

Features & Benefits

  • Purity Software: Standard
  • Measurement Range: ±259°Z, ±89.9°Arc
  • Accuracy: 0.01°Z
  • Temperature Correction: 20°C, 27.5°C or user defined
  • Built-in Thermo. Probe: Standard
  • Wavelengths: Standard – 589nm, 880nm
    Optional – 589nm, 587nm, 880nm, 882nm
  • TempTrol™ Electronic Temperature Control: Optional
This is Rudolph’s most popular instrument; it is used by 98% of all US sugar mills, 100% of all US customs labs and can be found in thousands of sugar mills around the world. It has 0.01 accuracy and is available in both 2 or 4 wavelength versions. TempTrol™ electronic cooling and heating is available as an option.
The TempTrol is™ only suitable for air conditioned modern laboratories.

Autopol 880T  and 880 Plus Saccharimeter

Compatible Cells for All Models

14 style cells:
for manual sampling

33 style cells: for pour-in sampling. Also available with water jackets for temperature control.

41T style cell: for pour-in sampling and electronic temperature control.

32 style cells: for automation.



Spec Highlights

Features & Benefits

  • Purity Software: Standard
  • Measurement Range: ±259°Z, ±89.9°Arc
  • Accuracy: 0.01°Z
  • Temperature Correction: 20°C, 27.5°C
  • Built-in Thermo. Probe: Standard
  • Wavelengths:Standard – 589nm, 880nm
    Optional – 589nm, 587nm, 880nm, 882nm
  • TempTrol™ Electronic Temperature Control: Standard
This is Rudolph’s latest and most advanced model. It was developed and tested in conjunction with labs testing pharmaceutical grade sugars. These labs require precise temperature control yet still want flow through cell type operation. For sugar trade labs and contract work that demands the best and most advanced saccharimeter in the world.
The TempTrol™ is only suitable for air conditioned modern laboratories.

Additional Solutions

Ethanol or % Alcohol Measurement

Automation


Density Meters

Automation

Measuring Purity

Purity software is standard on the Autopol® 589, 880, 880 Plus and 880T Saccharimeters,  just add a Refractometer and read BRIX, POL and PURITY simultaneously on the Autopol’s® large, digital,  LCD backlit display.

Sample Specific Programs

The AUTOPOL® models 589, 880, 880 Plus and 880T come with PURITY software and an unlimited number of sample specific programs which can be pre-defined for specific juices. This capability is advantageous in factory environments where the same type of samples are repeatedly measured. These programs allow for input parameters such as: multiplier, wavelength, and temperature correction to be pre-specified. The PURITY software and a Refractometer also allow dilution on a weight/weight or weight/volume basis which can also be pre-specified for each sample name. Each program can be labeled with an alphanumeric and assigned to one of the function keys. The factory operator simply presses the preassigned saccharimeter function key to start measurement.



Choosing a Refractometer for Your Purity System

See the Rudolph Refractometer product line for more details.



Models

Specifications

Features and Benefits

  • Measurement Range: 1.33 – 1.53 RI; 0 – 95% Brix
  • Accuracy: 0.00004 RI; 0.03 Brix
  • Electronic Temperature Control: Fixed temperature selection: 20°C and 25°C

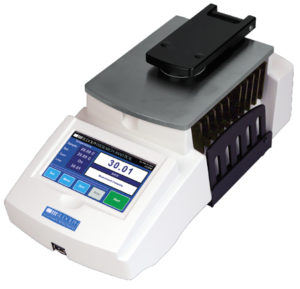

The J57HA’s simple interface and easy to clean prism surface make it one of our most popular models for the sugar industry. Temperature control to 20°C and 25°C makes it perfect for molasses and high Brix samples. Measurement speed can be improved by using Temperature Correction in conjunction with Temperature Control, allowing measurements to be made accurately almost as soon as the sample is placed on the prism.

  • Measurement Range: 1.33 – 1.53 RI; 0 – 95% Brix
  • Accuracy: 0.00004 RI; 0.03 Brix
  • Electronic Temperature Control: Flexible temperature selection between 15°C – 50°C
The J157-CC-AM is also quite popular with sugar factory labs. The non contact cover (CC) with built in electronic heating and cooling improves performance in harsh conditions. The Auto Measure (AM) feature allows the closing and opening of the cover to start and stop the measurement eliminating the need for the operator to touch the interface. Very popular for factory environments where air temperature varies dramatically: cold at night and hot during the day.

  • Measurement Range: 1.33 – 1.53 RI; 0 – 95% Brix
  • Accuracy: 0.00004 RI; 0.03 Brix
  • Electronic Temperature Control:
    KVP: Select any temperature between 15°C – 30°C
    PTW: Select any temperature between 15°C – 40°C
The J157-PTW can be operated as a pour through refractometer when measuring juices and then by loosening one thumb screw and lifting the hinged presser the instrument can be used like a J57. This allows the J157-PTW to measure molasses and other high Brix samples.The J157-KVP has a vertical prism that allows suspended solids to fall past the prism surface instead of on to the prism. The small funnel volume design with integrated over flow funnel increases sample flushes and reduces spillage. The J157-KVP is often favored in applications with highly turbid low Brix samples.

  • Measurement Range: 1.33 – 1.53 RI; 0 – 95% Brix
  • Accuracy: 0.00004 RI; 0.03 Brix
  • Electronic Temperature Control: KVP: Select any temperature between 15°C – 30°C
    PTW: Select any temperature between 15°C – 40°C
The J457 comes with the SmartMeasure™ solution that allows the operator to never touch the display. The instrument instructs when to load and clean a sample. The solution improves accuracy and reduces cleaning and loading errors.
