What Is a Density Meter? The operation of a density meter relies on the Mechanical oscillation principle and the gravimetric method. Archimedes’ principle states that an immersed object experiences an upthrust equal to the weight of the displaced fluid. Techniques such as the oscillating U-tube aid in accurate density calculations for liquids, semi-solids, and gases. Density meters are beneficial in numerous applications to measure density.
Density measurement is important in science, industry, and quality control to understand materials, monitor processes, and ensure product quality. We achieve this by using a density meter also known as a density balance. A density meter is an analytical instrument designed to measure the density of liquids, semi-solids, and gases with high accuracy.
The gravimetric method is utilized for liquids, semi-solids, and gases. This involves determining the mass of a known material and then calculates its density. Density meters commonly utilize an oscillating U-tube. This is because working with small volumes can be complex and prone to potential errors.
The oscillating U-tube method is a technique used to measure certain properties of a sample. Density measurements involve filling a U-shaped tube with the sample and then oscillating it at its natural frequency.
To perform this method, the U-tube is first filled with a liquid or semi-solid sample. The sample is carefully injected into the U-tube and then it is made to oscillate at its natural frequency. This can be achieved by applying a periodic force or by using a mechanical device such as a Piezo, that can produce oscillations. The frequency of the oscillations is adjusted to match the natural frequency of the U-tube.
Therefore, when the density meters’ U-tube oscillates, the sample inside also moves back and forth or up and down. This movement causes changes in the Period of oscillations of the sample. By carefully measuring these changes, various properties of the sample can be determined.
One of the main properties that can be measured using the Oscillating U-tube Principle is the density of the sample. As the sample oscillates the density of the sample can be determined by using mathematical equations. By analyzing these changes, the density of the sample can be accurately calculated.
How to Measure the Density of a Liquid?
To measure the density of a liquid using a Density Meter you must first load the sample into a syringe. If the sample is too viscous to manually inject, you may need the assistance of an automated system and a heated interface. Once the sample is loaded you must then check for air bubbles. Air Bubbles yield a lower oscillation of the U-Tube, and your measurement won’t be accurate. After you have checked and there are no air bubbles press the Start button and you will have a measurement reading typically 30-40 seconds after thermal equilibration. After the measurement is complete, your results will be automatically saved and/or exported to a thumb drive, Network, LIMS, SAP, etc.
What Is Density?
Density is a fundamental physical property that quantifies the mass of an object per unit volume. It is expressed as the ratio of mass (m) to volume (V), typically denoted as ρ (rho) in scientific notation. Mathematically, we can represent density as ρ = m/V. This property is important in determining an object’s buoyancy, as denser substances tend to sink in less dense fluids, while lighter substances float.
Density is a vital property used to describe the distribution of mass within a given volume. There are different ways to calculate this parameter such as Hydrometers Pycnometers, and automatic density meters. The latter are sophisticated instruments utilized across various scientific and industrial domains to measure density with accuracy. These instruments operate on principles such as Archimedes’ buoyancy principle and the gravimetric method.
Density Meter Types
Handheld Density Meters are compact, portable instruments designed for convenient and rapid density measurements in the field. These devices are equipped with easy-to-use interfaces and are suitable for a wide range of applications where on-site density assessments are required. Their mobility makes them valuable for industries such as food and beverage, petroleum, and pharmaceuticals, providing quick and reliable data without the need for extensive laboratory setups.
Benchtop Density Meters are designed for accurate density analysis in laboratory settings. These devices offer a higher degree of accuracy and repeatability compared to handheld density meters, making them ideal for applications demanding measurements. Benchtop density meters often feature advanced software capabilities, customizable parameters, and the ability to analyze a variety of sample types, making them versatile tools for research and quality control in industries such as Petroleum, Pharma, Flavor and Fragrance, chemistry, and material science.
Temperature-controlled Density Meters are specialized instruments that integrate accurate temperature regulation mechanisms into the density measurement process. These devices ensure accuracy by controlling temperature variations. Commonly used in industries like the Chemical and Petrochemical sectors, these types of density meters allow operators to obtain highly accurate density readings by maintaining a constant temperature, critical for reproducible and repeatable results for your applications.
Rudolph Research Analytical Manufactures Density meters for both research and production work across multiple industries. Here is a list of the industry-specific refractometers:
Chemical/Petroleum Lab Density Meter – DDM 2910
Pharmaceutical Density Meter – DDM 2911

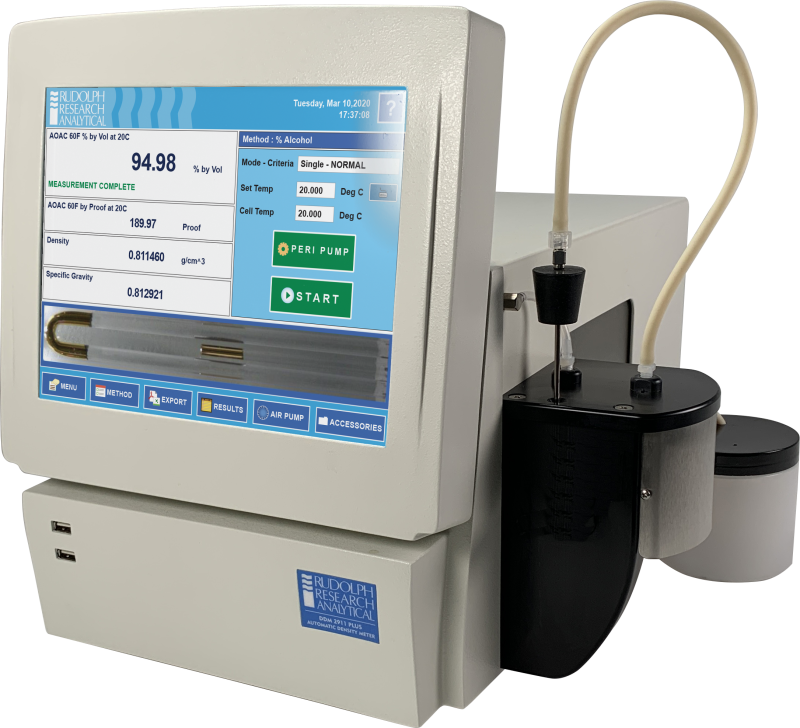

Alcohol Proof Testing Density Meter – DDM2911 PLUS (TTB Approved)
